36′ x 24′ Lean Cabin Plan – 2 Bed, 2 Bath, 864 sq ft with Wraparound Deck
$99.00
36′ x 24′ lean cabin with wraparound deck plan with 2 bedrooms, 2 baths and 864 sq ft on one level. $99 instant download: 15-sheet PDF plan set plus material list.
- Drawing error? We fix it free. Corrected files sent to you.
- Picked the wrong plan? Email us before downloading and we swap it.
- See before you buy: view the 15 sample sheets
- Questions? Chat with us for more help
Description
These 36×24 lean cabin plans give you a modern lean cabin with 2 bedrooms and 2 bathrooms on one level. The 36′ x 24′ footprint holds 864 square feet under a single-slope roof, and an 8′ raised deck wraps all four sides.

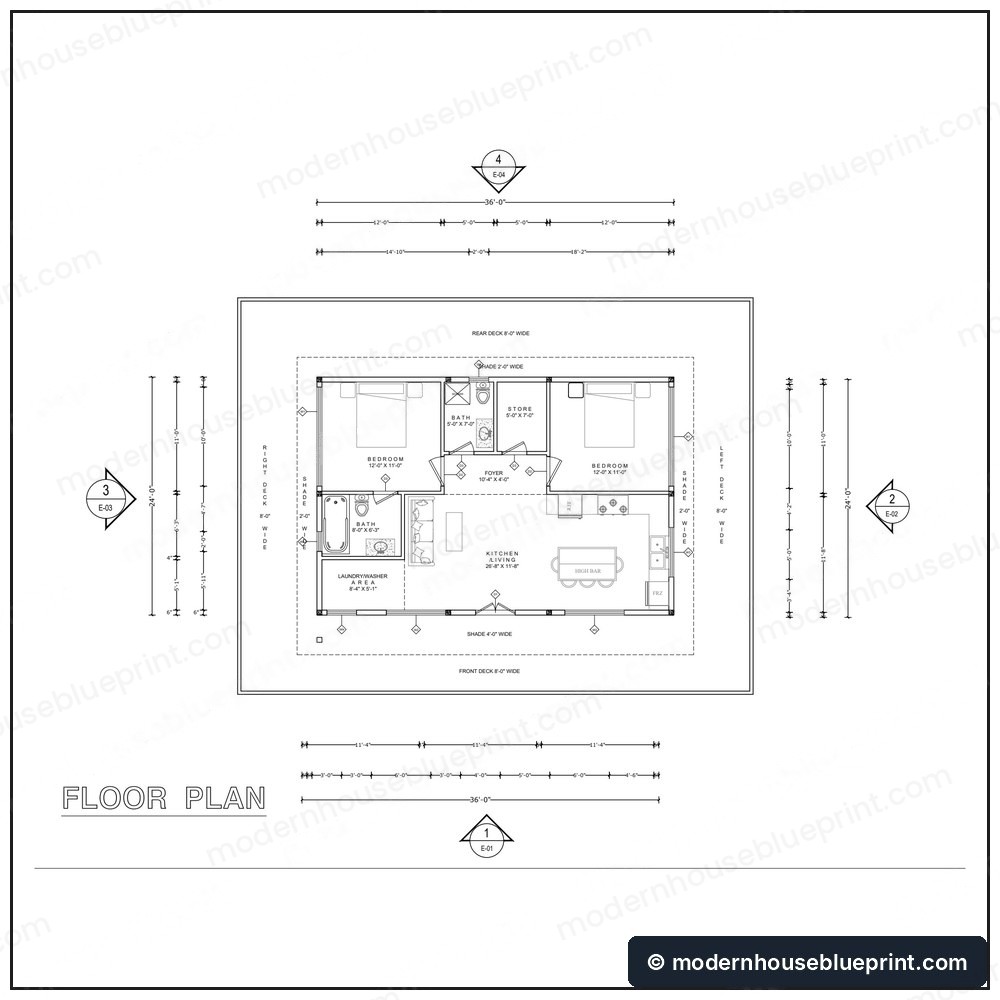

Two 12′ x 11′ bedrooms sit at each end of the back wall, with a 5′ x 7′ bathroom, a 5′ x 7′ storage room and a small foyer between them. A second 8′ x 6′-3″ bathroom with a tub and an 8′-4″ x 5′-1″ laundry area sit at the front corner. The 26′-8″ x 11′-8″ kitchen and living room runs the full width of the front with a high bar.
Black vertical siding, black-framed glass and transom windows and the wraparound deck with stairs to the ground give it a strong modern look on a wooded lot.
At a glancePlan at a Glance
Quick Specs
| Footprint | 36′ x 24′ |
|---|---|
| Area | 864 sq ft (single level) |
| Bedrooms | 2 (each 12′-0″ x 11′-0″) |
| Bathrooms | 2 (5′-0″ x 7′-0″ with shower, and 8′-0″ x 6′-3″ with tub) |
| Kitchen and Living | 26′-8″ x 11′-8″, open plan with high bar |
| Storage and Laundry | 5′-0″ x 7′-0″ store room, 8′-4″ x 5′-1″ laundry and washer area, 10′-4″ x 4′-0″ foyer |
| Roof | Single-slope shed roof |
| Decks | 8′ wraparound deck on all four sides with 2′–4′ covered shade |
| Foundation | Monolithic slab with thickened edges |
| Format | Digital PDF download |
Room by Room
What Is and Is Not in the Set
15-sheet PDF plan set, print ready, plus a material list:
Included
- Cover page with general notes
- Floor plan

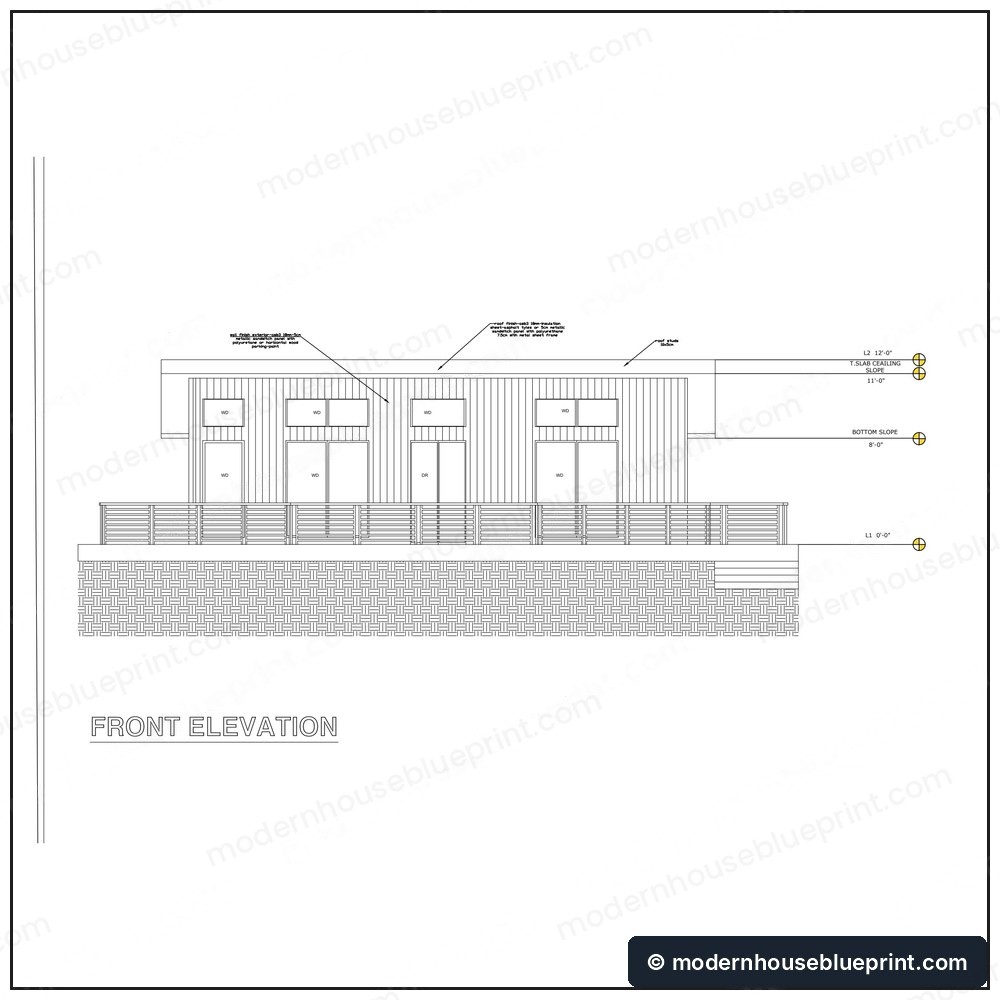

- Front, left, right and back elevations
- Section A-A
- Door and window schedule
- Roof plan and roof framing plan
- Foundation plan with slab details
- Electrical plan with legend
- Plumbing plan
- Plumbing riser diagram and HVAC plan

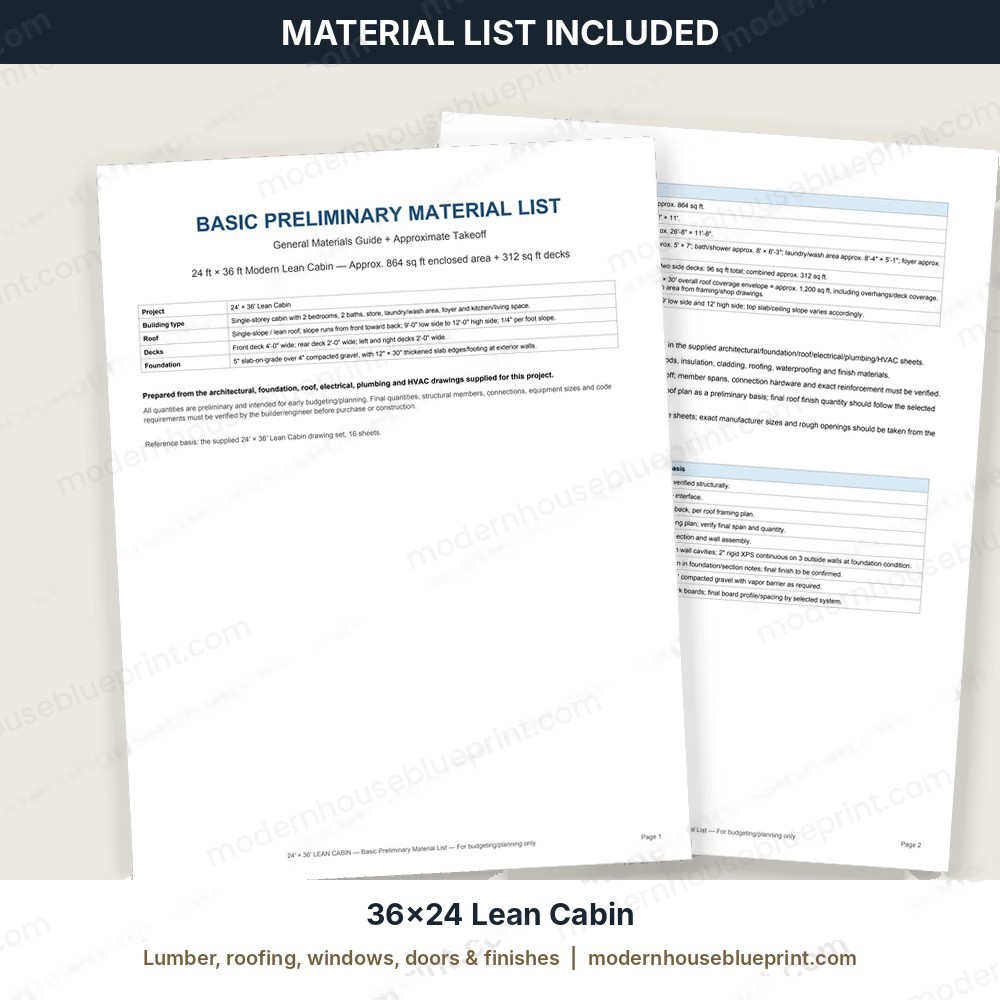

- Preliminary material list
Not included
- Engineer or architect stamp
- Site plan for your lot
- Energy, HVAC or structural calculations
- CAD/DWG files (available on select plans, ask us)
- Changes to the design (see Custom Plans)
What Will It Cost to Build?
A rough guide for the USA in 2026, based on the 864 sq ft main level, so you can see if the project fits your budget.
Owner-builder
Contractor built
Site & extras
Who This Plan Is For
Instant Download
Your download link arrives right after checkout, so you can start reviewing the plans straight away. Want changes to the layout or finishes? Send us a custom plan request, or see what comes in every plan set.
Good to knowBefore You Build
Please review the included drawings and your local requirements before construction. Local building departments may require site-specific modifications, engineering or professional review.
Common Questions
What size is the Lean Cabin with Wraparound Deck?
It is 864 sq ft on one level in a 36′ x 24′ footprint.
How many bedrooms and bathrooms does this plan have?
Two bedrooms and two bathrooms, plus an open kitchen and living room with a high bar and a laundry area.
What comes in the plan set?
A 15-sheet PDF: cover page, floor plan, four elevations, section, door and window schedule, roof plan, roof framing, foundation, electrical and plumbing plans, plus a preliminary material list.
What foundation and roof does the plan use?
A monolithic concrete slab with thickened edges, and a single-slope shed roof.
Can I use these plans to get a building permit?
The set includes the drawings most building departments ask for, but requirements differ by area. Some require site-specific changes or a local engineer’s review, so check with your building office before you build.
How do I get the plans?
Your download link arrives right after checkout. The plans are digital PDF files, so you can start reviewing them straight away.
