24′ x 36′ Modern American Cabin House Plan – 2 Bed, 2 Bath, 864 sq ft with Wraparound Deck
$99.00
24′ x 36′ modern american cabin house plan with 2 bedrooms, 2 baths and 864 sq ft on one level. $99 instant download: 16-sheet PDF plan set plus material list.
- Drawing error? We fix it free. Corrected files sent to you.
- Picked the wrong plan? Email us before downloading and we swap it.
- See before you buy: view the 15 sample sheets
- Questions? Chat with us for more help
Description
These 24×36 2 bedroom 2 bath house plans give you a modern American-style cabin house on one level, under a single-slope roof. The 24′ x 36′ footprint holds 864 square feet and sits on a raised deck that wraps the whole house, with stairs down to the front walk.
The master suite fills the back of the house: a 16′-8″ x 11′ bedroom with a full closet wall and its own 6′ x 11′ bathroom. A second 10′-8″ x 11′ bedroom and a second full bath sit in the middle, and a laundry area sits by the main entry. The open 12′ x 23′-8″ kitchen and living room runs along the side with a high bar island.
Black vertical siding, tall black-framed glass and clerestory windows give it a clean modern look, and the deck adds outdoor living on every side. A slab foundation and one roof plane keep the build simple to plan and to price.
At a glancePlan at a Glance
Quick Specs
| Footprint | 24′ x 36′ |
|---|---|
| Area | 864 sq ft (single level) |
| Bedrooms | 2 (master 16′-8″ x 11′-0″ with closet wall, second bedroom 10′-8″ x 11′-0″) |
| Bathrooms | 2 (master bath 6′-0″ x 11′-0″ and hall bath 6′-0″ x 11′-0″, each with tub and shower) |
| Kitchen and Living | 12′-0″ x 23′-8″, open plan with high bar island |
| Laundry | 11′-0″ x 6′-0″ laundry and washer area by the entry |
| Roof | Single-slope shed roof |
| Decks | Wraparound deck: front 4′, both sides 8′ with 2′ covered shade, rear 8′, with front stairs |
| Foundation | Monolithic slab with thickened edges |
| Format | Digital PDF download |
Room by Room
What Is and Is Not in the Set
16-sheet PDF plan set, print ready, plus a material list:
Included
- Cover page with general notes

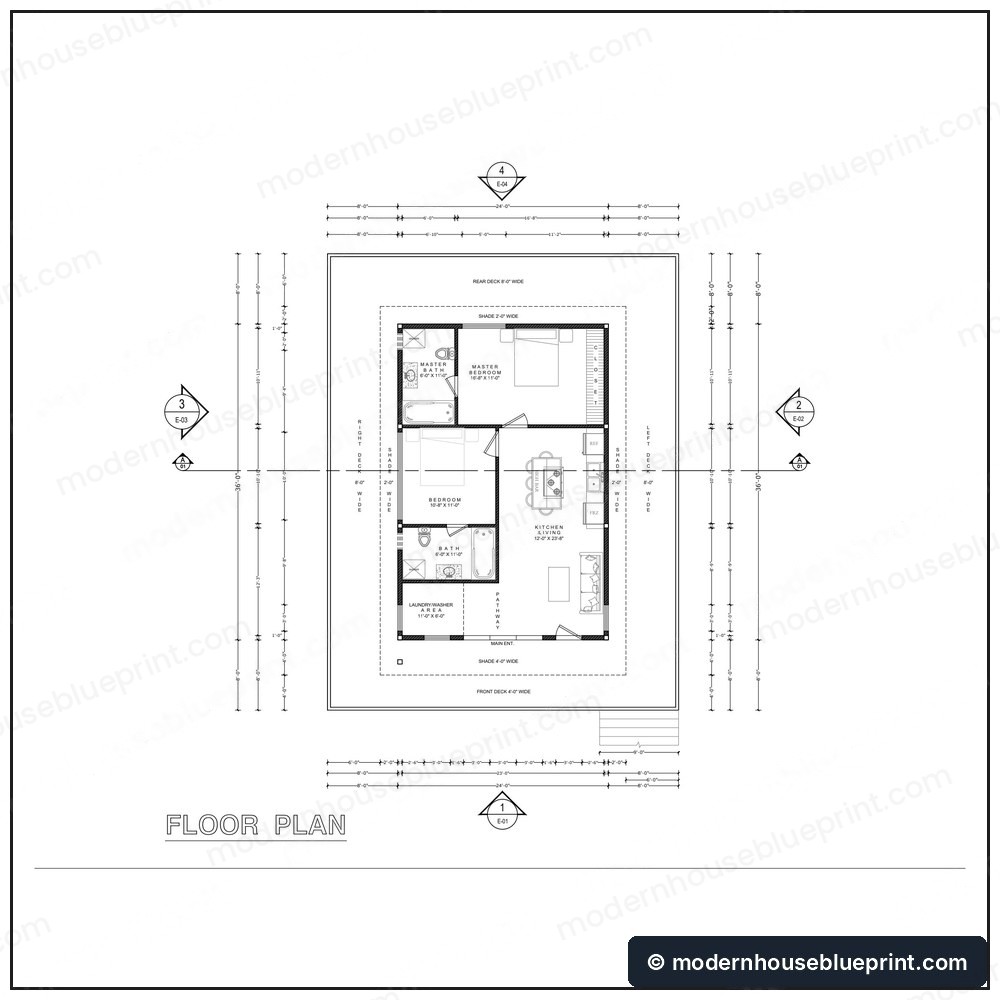

- Floor plan

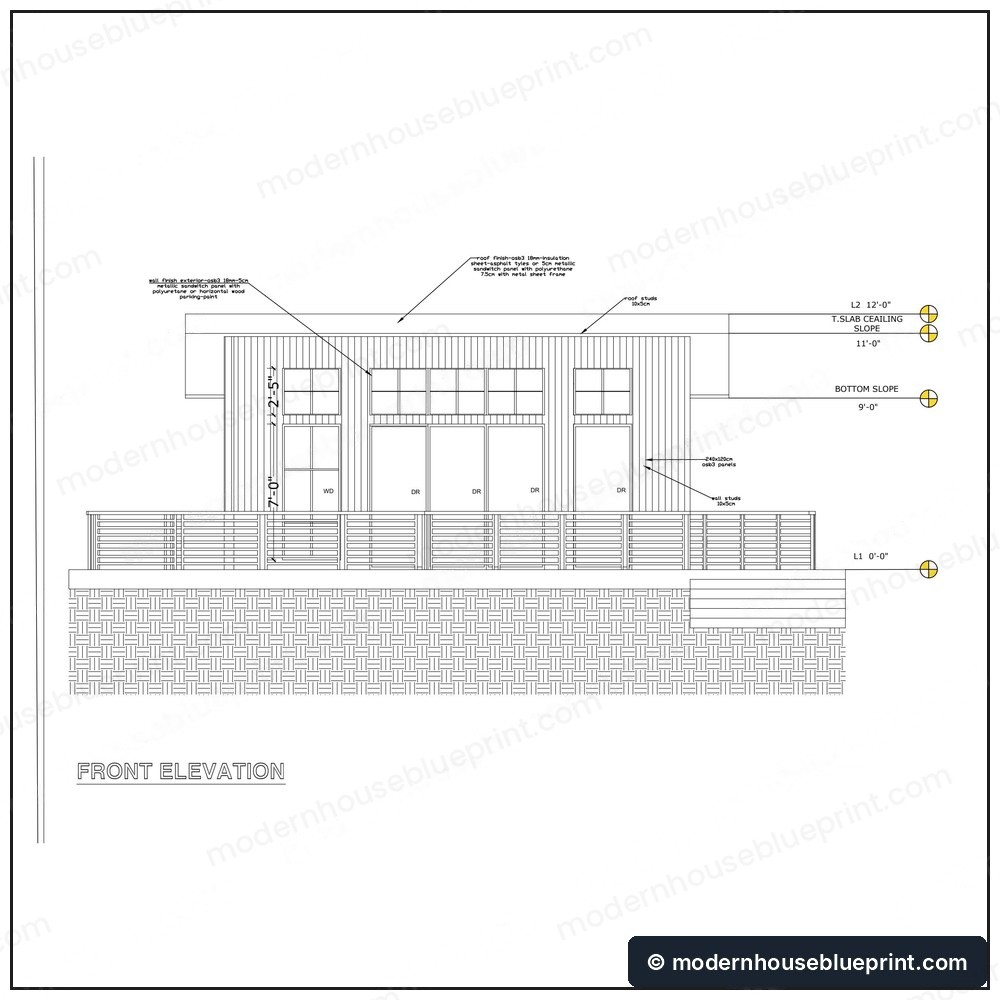

- Front, left, right and back elevations
- Section A-A
- Door and window schedule
- Roof plan and roof framing plan
- Foundation plan with slab details
- Electrical plan with legend
- Plumbing plan
- Electrical one-line riser, plumbing riser and HVAC plan

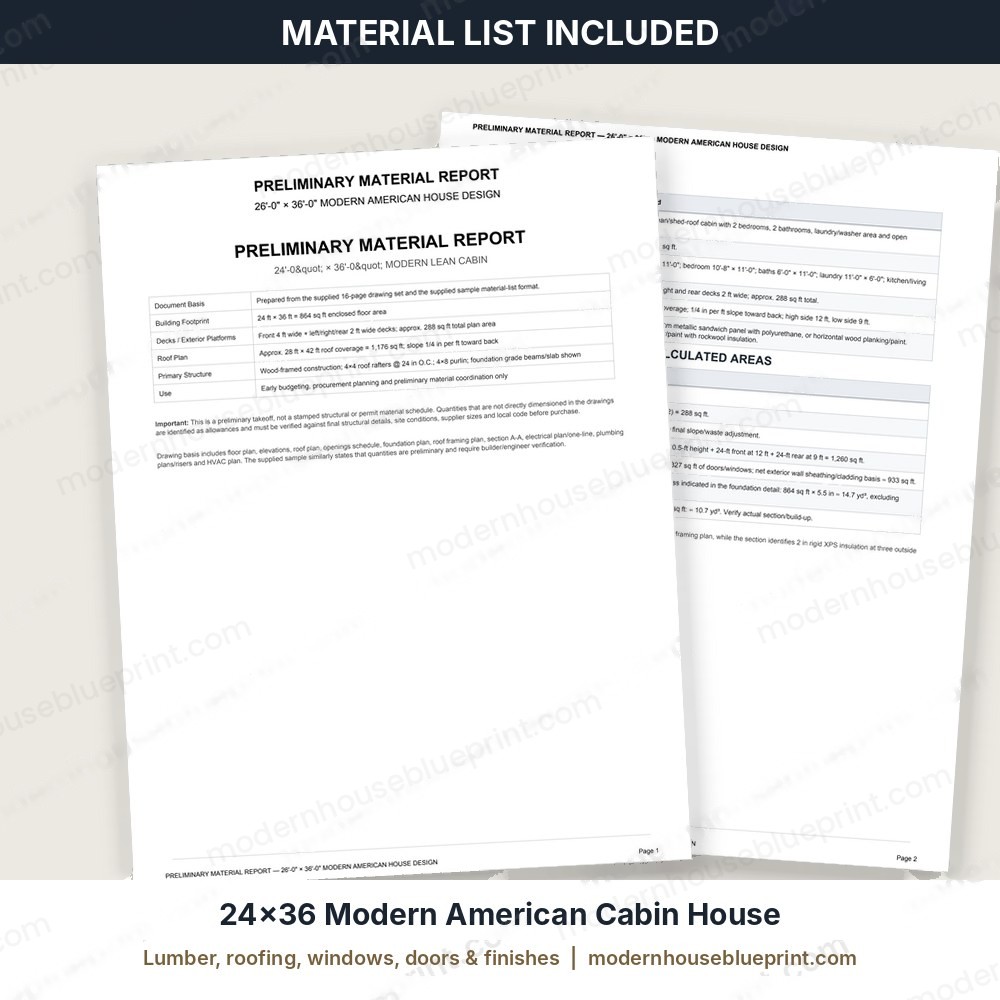

- Preliminary material list
Not included
- Engineer or architect stamp
- Site plan for your lot
- Energy, HVAC or structural calculations
- CAD/DWG files (available on select plans, ask us)
- Changes to the design (see Custom Plans)
What Will It Cost to Build?
A rough guide for the USA in 2026, based on the 864 sq ft main level, so you can see if the project fits your budget.
Owner-builder
Contractor built
Site & extras
Who This Plan Is For
Instant Download
Your download link arrives right after checkout, so you can start reviewing the plans straight away. Want changes to the layout or finishes? Send us a custom plan request, or see what comes in every plan set.
Good to knowBefore You Build
Please review the included drawings and your local requirements before construction. Local building departments may require site-specific modifications, engineering or professional review.
Common Questions
What size is the Modern American Cabin House?
It is 864 sq ft on one level in a 24′ x 36′ footprint.
How many bedrooms and bathrooms does this plan have?
Two bedrooms and two bathrooms, plus an open kitchen and living room with a high bar and a laundry area.
What comes in the plan set?
A 16-sheet PDF: cover page, floor plan, four elevations, section, door and window schedule, roof plan, roof framing, foundation, electrical and plumbing plans, plus a preliminary material list.
What foundation and roof does the plan use?
A monolithic concrete slab with thickened edges, and a single-slope shed roof.
Can I use these plans to get a building permit?
The set includes the drawings most building departments ask for, but requirements differ by area. Some require site-specific changes or a local engineer’s review, so check with your building office before you build.
How do I get the plans?
Your download link arrives right after checkout. The plans are digital PDF files, so you can start reviewing them straight away.
