36′ x 24′ Scandinavian Glass Cabin Plan – 2 Bed, 1 Bath with Sleeping Loft (864 sq ft)
$99.00
36′ x 24′ Scandinavian glass cabin plan with 2 bedrooms, 1 bath, a sleeping loft and 864 sq ft on the main level. $99 instant download: 14-sheet PDF plan set plus material list.
- Drawing error? We fix it free. Corrected files sent to you.
- Picked the wrong plan? Email us before downloading and we swap it.
- See before you buy: view the 15 sample sheets
- Questions? Chat with us for more help
Description
This 36×24 Scandinavian cabin plan gives you a glass-front lean cabin with 2 bedrooms, 1 bathroom and a sleeping loft under a single-slope roof. The 36′ x 24′ footprint holds 864 square feet on the main level, and a full-height glass wall opens the living room straight onto an 8′ front deck.

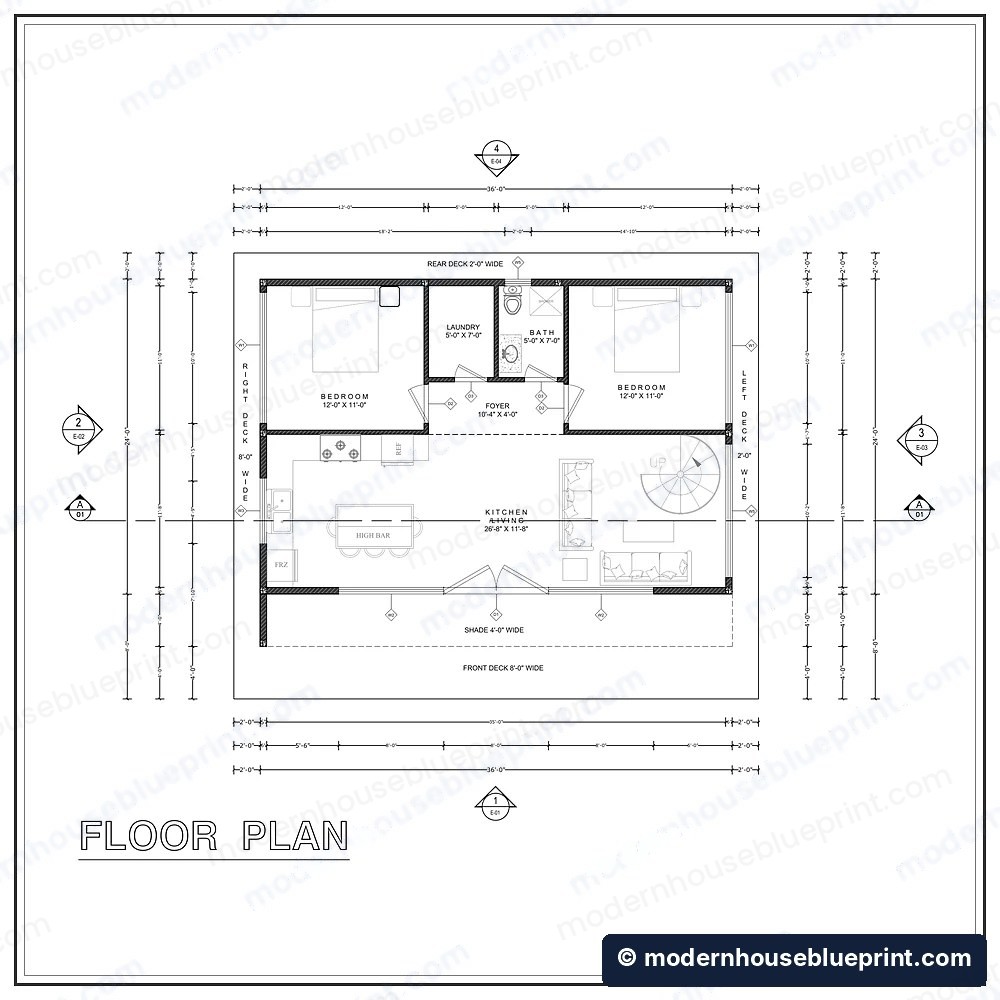

The layout keeps sleeping and living apart. A small foyer at the center connects the two 12′ x 11′ bedrooms, one at each end of the cabin, with the bathroom and a separate laundry room between them. The open kitchen and living area runs the full 26′-8″ x 11′-8″ along the front, with a high bar for casual meals and a spiral stair up to the sleeping loft, which is open to the living room below.
The lean roof rises from 8′ on the low side to 15′ on the high side, so the glass wall grows taller toward the view and the loft gets real headroom. Light vertical wood siding, black window frames and one plain rectangle give it a clean Scandinavian profile, and one roof plane on a monolithic slab keeps the framing simple for an owner-builder and easy for a contractor to price.
At a glancePlan at a Glance
Quick Specs
| Footprint | 36′ x 24′ |
|---|---|
| Area | 864 sq ft (main level) plus sleeping loft |
| Bedrooms | 2 (12′ x 11′ each) |
| Bathrooms | 1 (5′ x 7′, with shower) |
| Laundry | Separate laundry room (5′ x 7′) |
| Kitchen and Living | 26′-8″ x 11′-8″, open plan with high bar |
| Foyer | 10′-4″ x 4′-0″ |
| Loft | Sleeping loft open to below, reached by a spiral stair |
| Design | Scandinavian glass cabin with single-slope roof |
| Roof | 8′-0″ low side, 15′-0″ high side |
| Decks | Front deck 8′ wide with 4′ of shade, right-side deck 8′ wide, 2′ deck on the left side and rear |
| Foundation | Monolithic slab with thickened edges |
| Walls | 2×6 stud walls |
| Format | Digital PDF download |
Room by Room
What Is and Is Not in the Set
14-sheet PDF plan set, print ready, plus a material list:
Included
- Cover page with general notes
- Floor plan

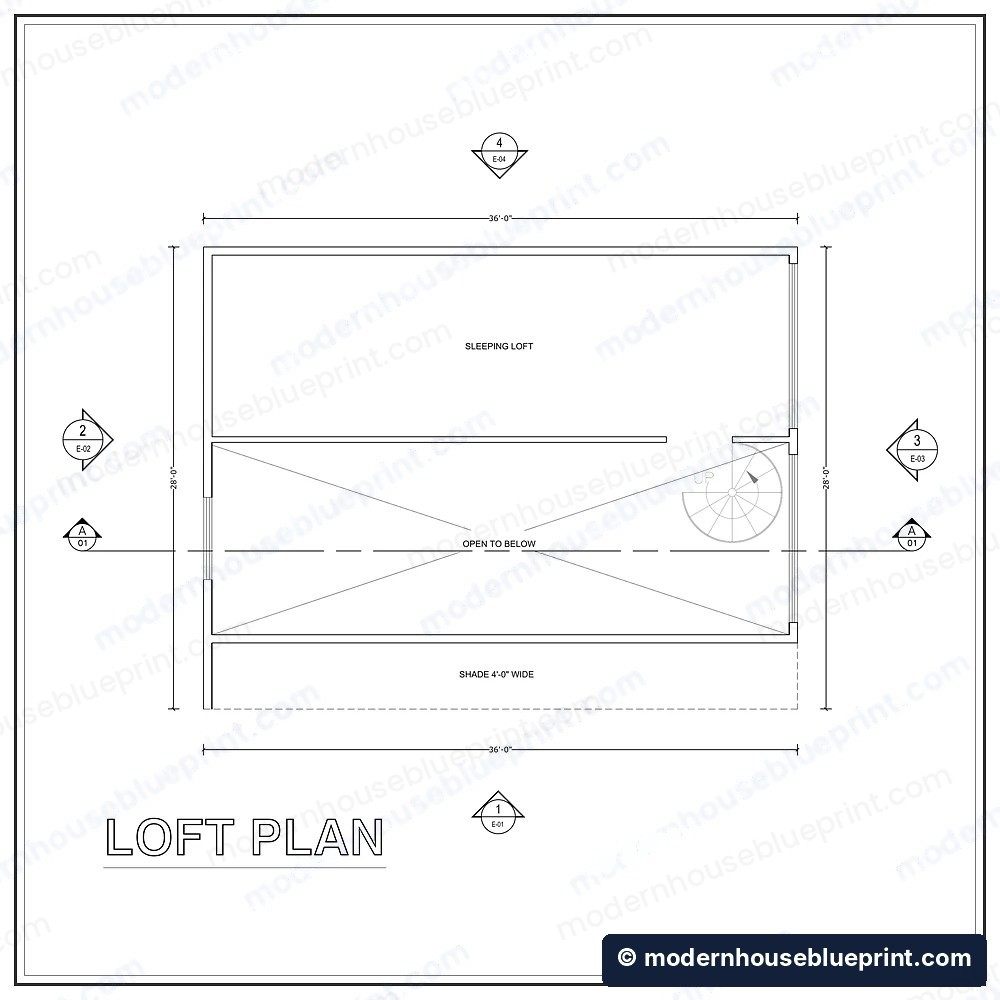

- Loft plan

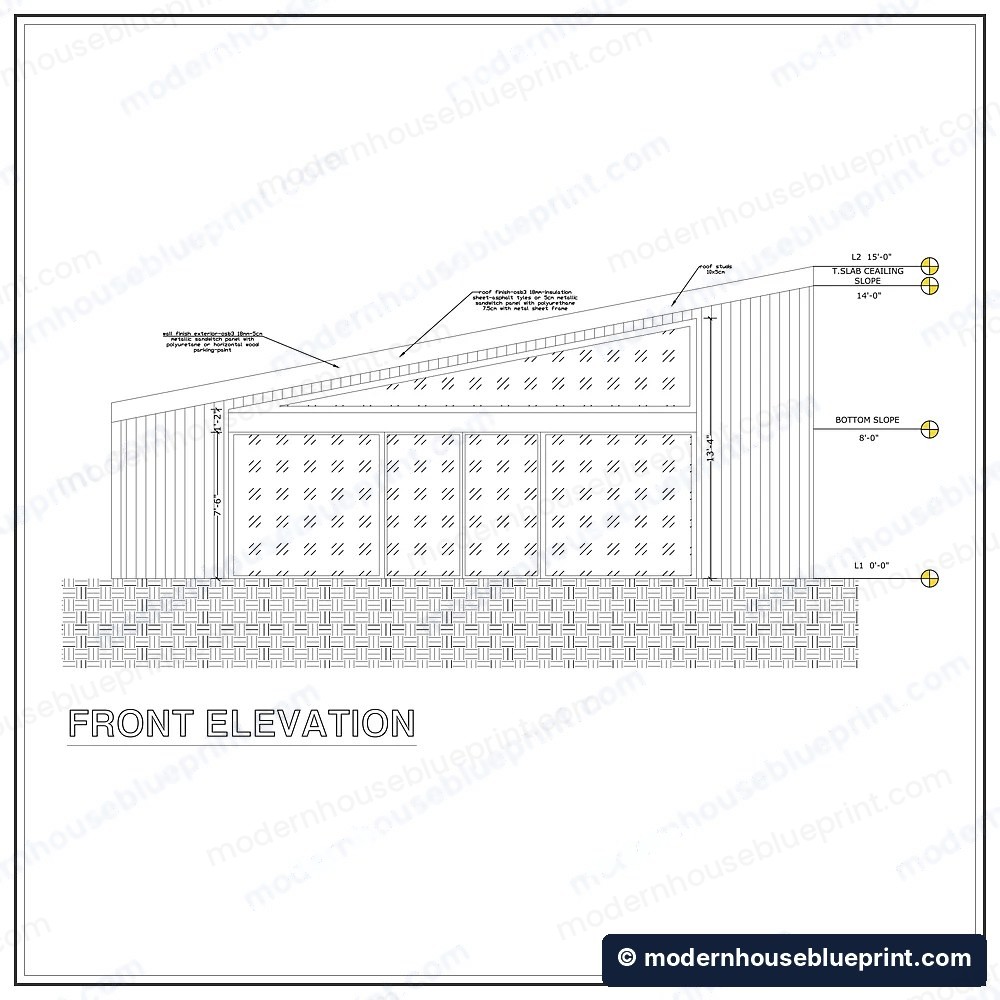

- Front, left, right and back elevations
- Section A-A
- Door and window schedule
- Roof plan
- Roof framing plan
- Foundation plan with slab details
- Electrical plan
- Plumbing plan with waste and vent riser diagram

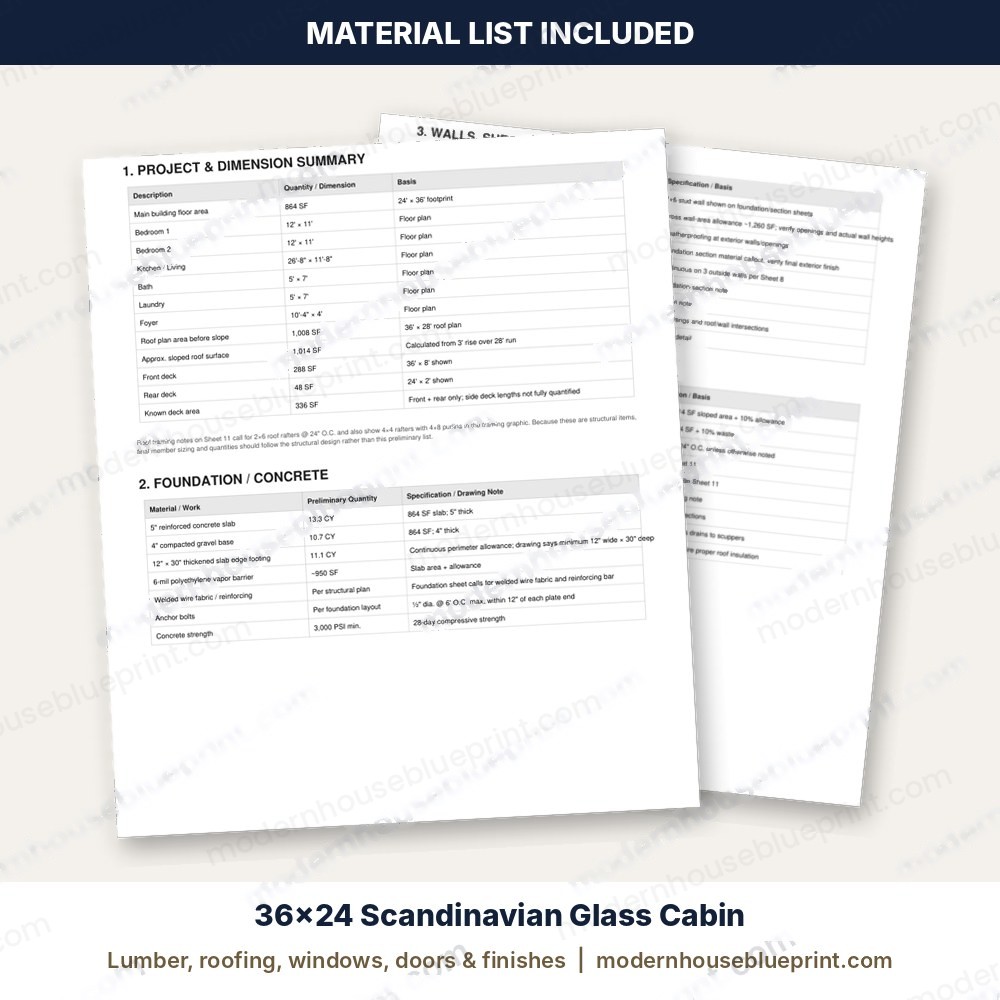

- Material list
Not included
- Engineer or architect stamp
- Site plan for your lot
- Energy, HVAC or structural calculations
- CAD/DWG files (available on select plans, ask us)
- Changes to the design (see Custom Plans)
What Will It Cost to Build?
A rough guide for the USA in 2026, based on the 864 sq ft main level, so you can see if the project fits your budget. The loft adds some cost on top of this.
Owner-builder
Contractor built
Site & extras
Who This Plan Is For
Instant Download
Your download link arrives right after checkout, so you can start reviewing the plans straight away.
Good to knowBefore You Build
Please review the included drawings and your local requirements before construction. Local building departments may require site-specific modifications, engineering or professional review.
Common Questions
What size is the 36×24 Scandinavian glass cabin?
It is 864 sq ft on the main level in a 36′ x 24′ footprint, plus a sleeping loft, with an 8′ front deck, an 8′ right-side deck and 2′ decks on the left side and rear.
How many bedrooms and bathrooms does this plan have?
Two bedrooms, each 12′ x 11′, and one 5′ x 7′ bathroom with a shower. There is also a separate laundry room, and the sleeping loft adds extra space for guests or kids.
What comes in the plan set?
A 14-sheet PDF: cover page, floor plan, loft plan, four elevations, building section, door and window schedule, roof plan, roof framing plan, foundation plan, electrical plan and plumbing plan, plus a material list.
What foundation and roof does the cabin use?
A monolithic concrete slab with thickened edges, and a single-slope lean roof that rises from 8′ on the low side to 15′ on the high side above the glass front.
Can I use these cabin plans to get a building permit?
The set includes the drawings most building departments ask for, but requirements differ by area. Some require site-specific changes or a local engineer’s review, so check with your building office before you build.
How do I get the plans?
Your download link arrives right after checkout. The plans are digital PDF files, so you can start reviewing them straight away.
