24′ x 36′ Wood Lean Cabin Plan – 2 Bed, 1 Bath with Sleeping Loft (864 sq ft)
$99.00
24′ x 36′ wood lean cabin plan with 2 bedrooms, 1 bath, a sleeping loft and 864 sq ft on the main level. $99 instant download: 14-sheet PDF plan set plus material list.
- Drawing error? We fix it free. Corrected files sent to you.
- Picked the wrong plan? Email us before downloading and we swap it.
- See before you buy: view the 15 sample sheets
- Questions? Chat with us for more help
Description
These 24×36 wood cabin plans give you a modern lean cabin with 2 bedrooms, 1 bathroom and a sleeping loft. The 24′ x 36′ footprint holds 864 square feet on the main level, finished with light natural wood siding, a single-slope roof and a full-height glass wall facing the front deck.

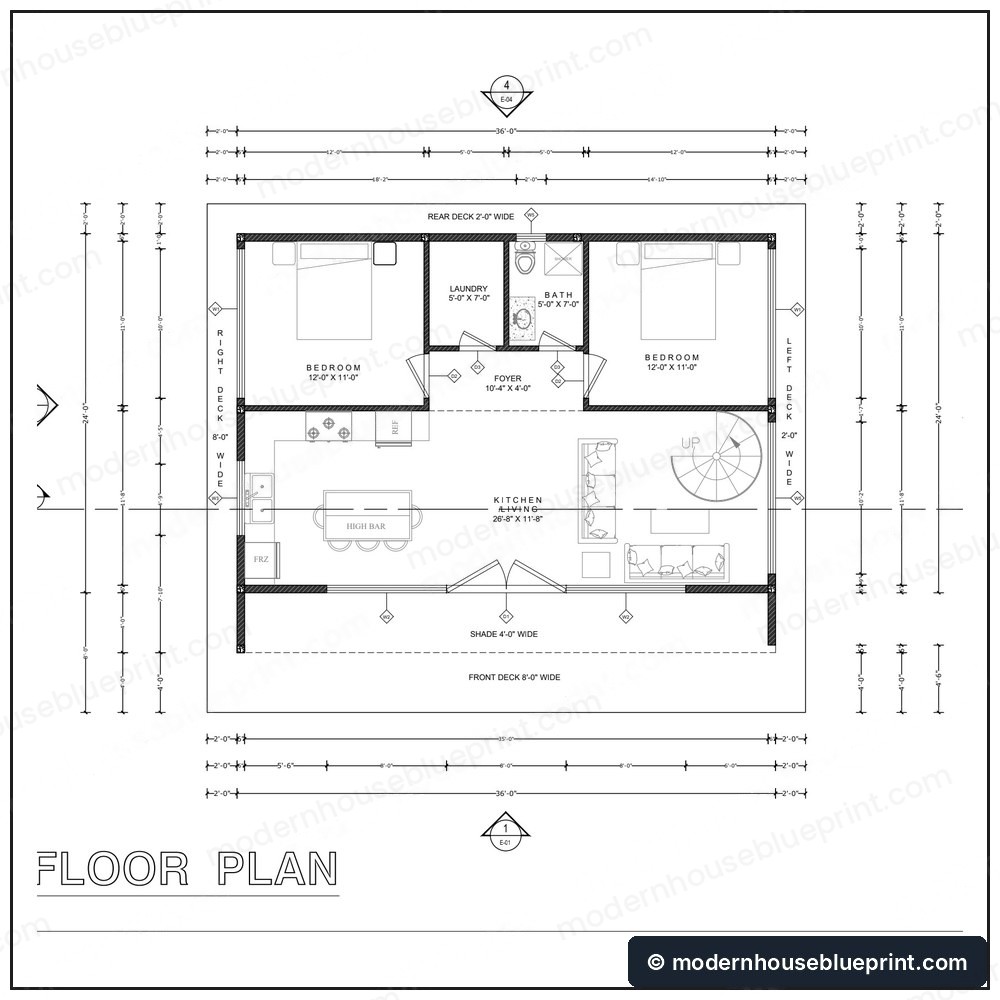

Two 12′ x 11′ bedrooms sit at the back with a bathroom and a laundry room between them, off a small foyer. The front of the cabin is one open 26′-8″ x 11′-8″ kitchen and living room with a high bar, and a spiral stair in the corner leads up to the sleeping loft, which is open to the room below.
The pale wood siding and simple lines give it a calm Scandinavian look that blends into the trees. An 8′ front deck with a 4′ covered shade runs across the glass wall. It is one simple rectangle on a monolithic slab, so it is easy for an owner-builder to plan and for a contractor to price.
At a glancePlan at a Glance
Quick Specs
| Footprint | 24′ x 36′ |
|---|---|
| Area | 864 sq ft main level, plus sleeping loft |
| Bedrooms | 2 (each 12′-0″ x 11′-0″) |
| Bathrooms | 1 (5′-0″ x 7′-0″, with shower) |
| Kitchen and Living | 26′-8″ x 11′-8″, open plan with high bar |
| Laundry | 5′-0″ x 7′-0″ |
| Loft | Sleeping loft, open to below, reached by a spiral stair |
| Roof | Single-slope shed roof |
| Decks | Front deck 8′ wide with 4′ covered shade; Right-side deck 8′ wide and left-side deck 2′ wide; rear deck 2′ wide |
| Foundation | Monolithic slab with thickened edges |
| Format | Digital PDF download |
Room by Room
What Is and Is Not in the Set
14-sheet PDF plan set, print ready, plus a material list:
Included
- Cover page with general notes

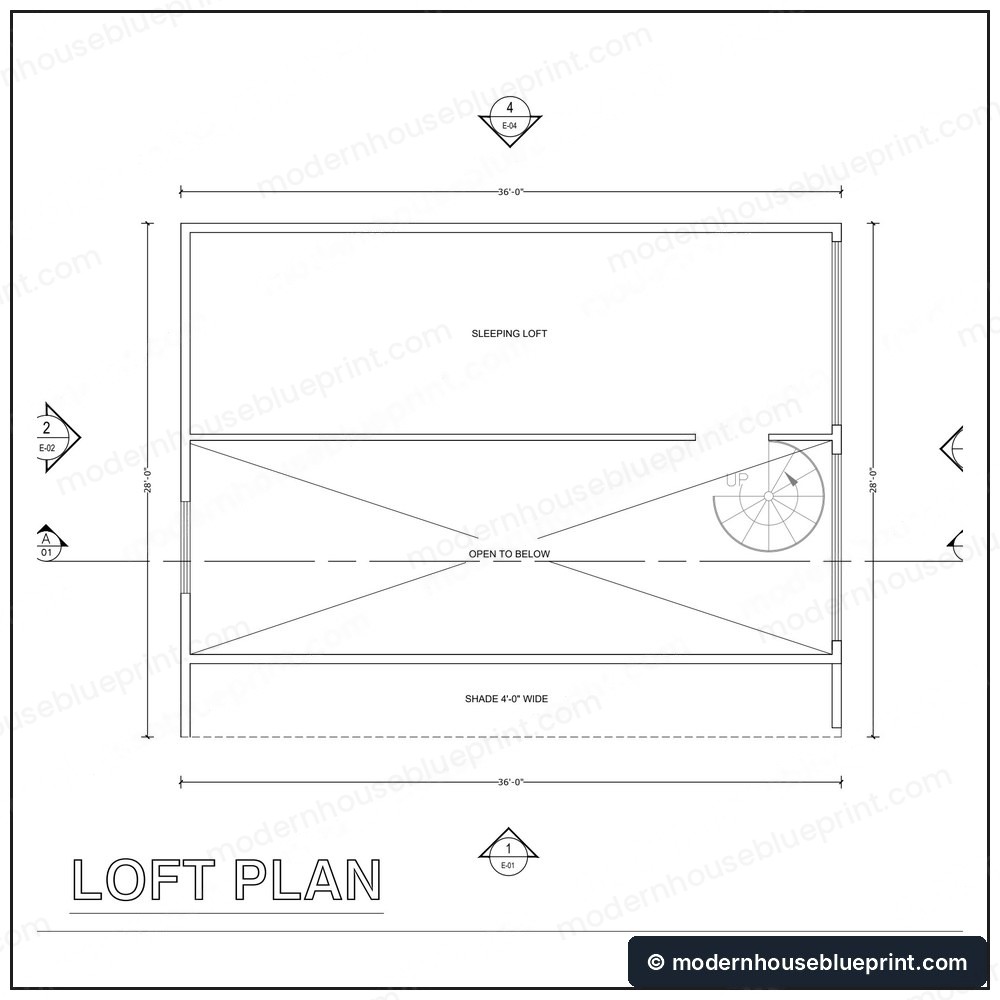

- Floor plan and loft plan

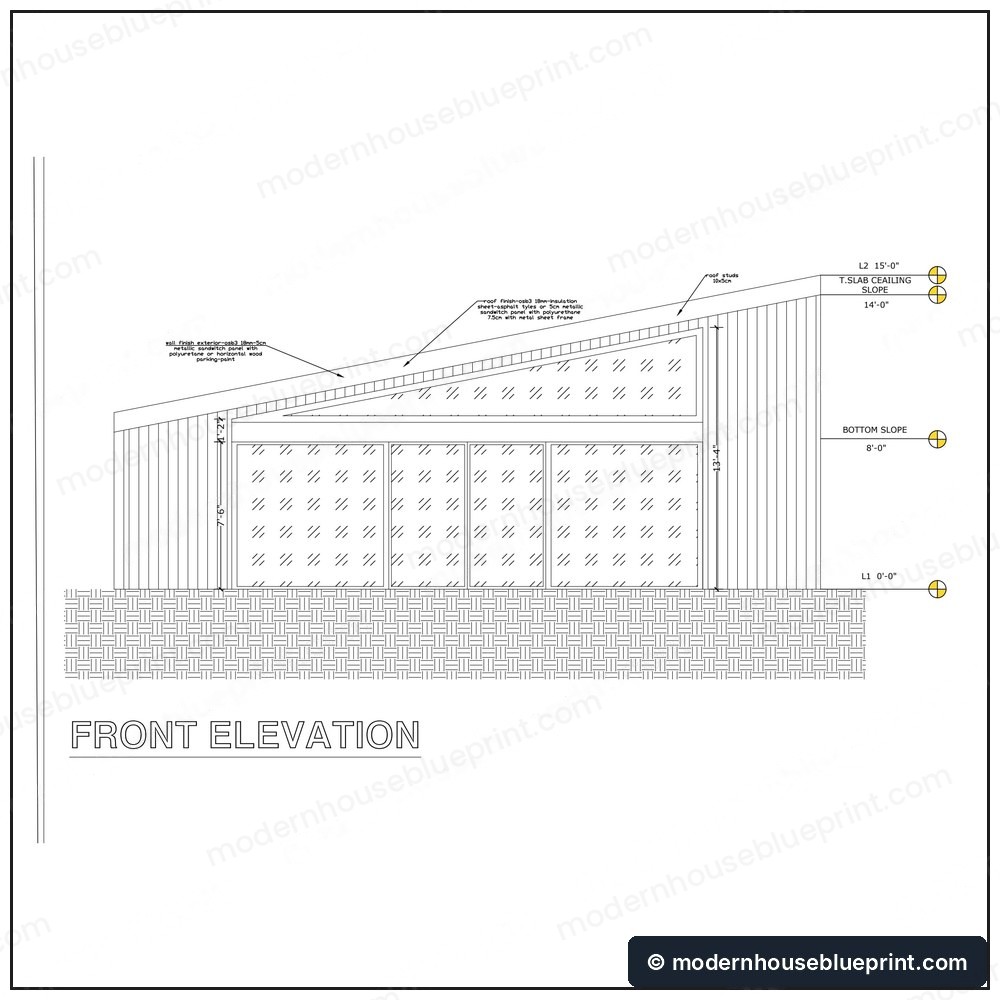

- Front, left, right and back elevations
- Section A-A
- Door and window schedule
- Roof plan and roof framing plan
- Foundation plan with slab details
- Electrical plan with legend
- Plumbing plan with waste and vent riser diagram

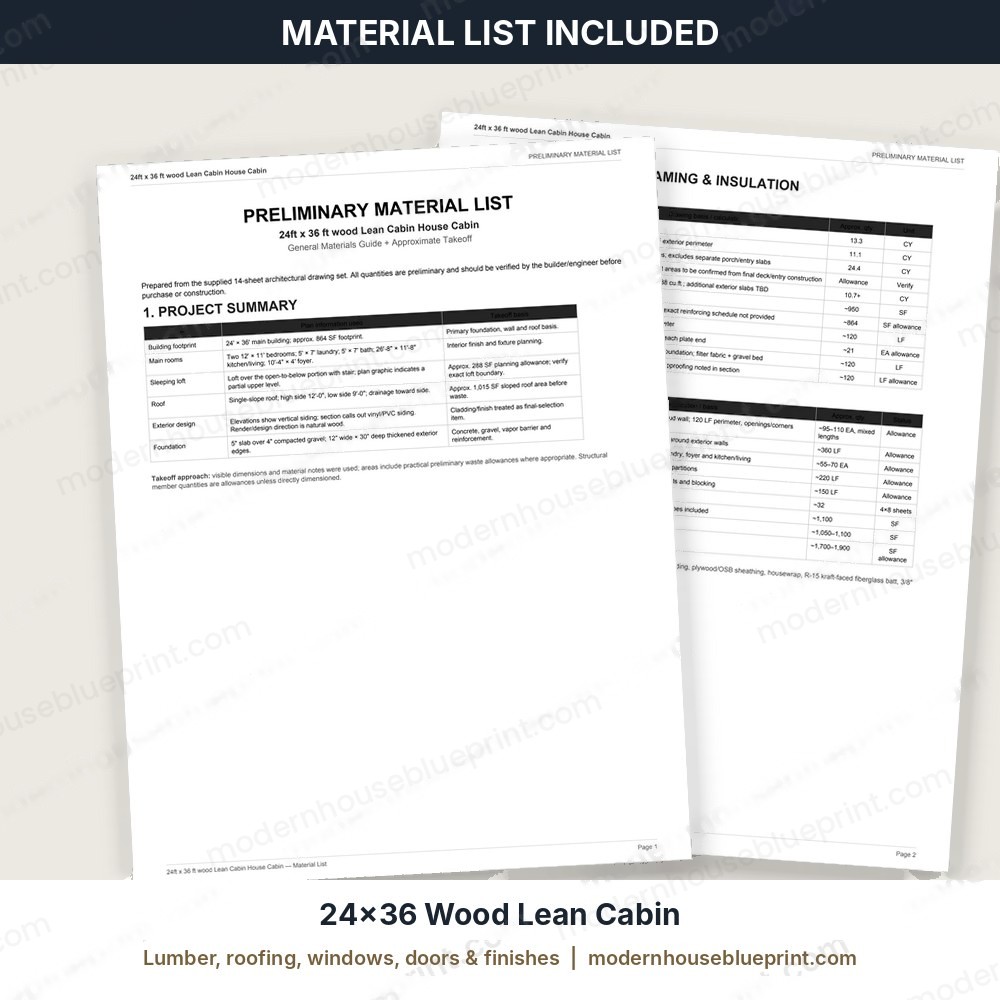

- Preliminary material list
Not included
- Engineer or architect stamp
- Site plan for your lot
- Energy, HVAC or structural calculations
- CAD/DWG files (available on select plans, ask us)
- Changes to the design (see Custom Plans)
What Will It Cost to Build?
A rough guide for the USA in 2026, based on the 864 sq ft main level, so you can see if the project fits your budget. The loft adds some cost on top of this.
Owner-builder
Contractor built
Site & extras
Who This Plan Is For
Instant Download
Your download link arrives right after checkout, so you can start reviewing the plans straight away. Want changes to the layout or finishes? Send us a custom plan request, or see what comes in every plan set.
Good to knowBefore You Build
Please review the included drawings and your local requirements before construction. Local building departments may require site-specific modifications, engineering or professional review, including snow and wind loads for the loft and roof.
Common Questions
What size is the Wood Lean Cabin?
It is 864 sq ft on the main level in a 24′ x 36′ footprint, plus a sleeping loft reached by a spiral stair.
How many bedrooms and bathrooms does this plan have?
Two 12′ x 11′ bedrooms and one 5′ x 7′ bathroom with a shower, plus a 5′ x 7′ laundry room and an open kitchen and living area.
What comes in the plan set?
A 14-sheet PDF: cover page, floor plan, loft plan, four elevations, building section, door and window schedule, roof plan, roof framing plan, foundation plan, electrical plan and plumbing plan, plus a preliminary material list.
What foundation and roof does the cabin use?
A monolithic concrete slab with thickened edges, and a single-slope shed roof.
Can I use these cabin plans to get a building permit?
The set includes the drawings most building departments ask for, but requirements differ by area. Some require site-specific changes or a local engineer’s review, so check with your building office before you build.
How do I get the plans?
Your download link arrives right after checkout. The plans are digital PDF files, so you can start reviewing them straight away.
